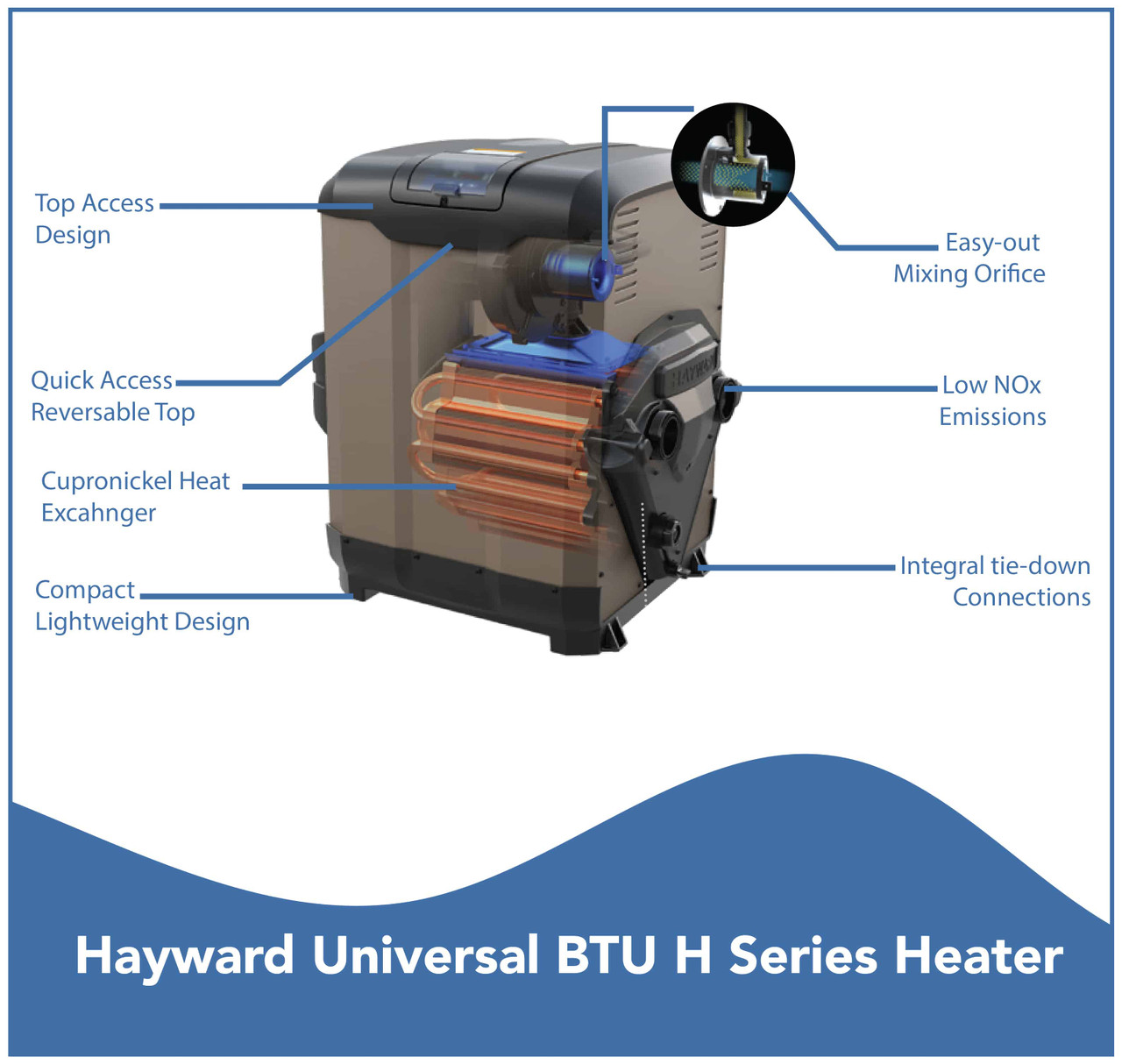

Combining advanced technology with universal-fit flexibility, the Hayward Universal H-Series heater is a smart choice for virtually any new installation or existing system upgrade. Delivering state-of-the-industry performance, outstanding energy efficiency, extremely low NOx emission levels and legendary durability and reliability. A choice of left-side or right-side electric, gas and water connections gives the Universal H-Series heaters unprecedented installation flexibility. This enhanced adaptability – coupled with lightweight design, modern low-profile appearance and only front-panel access required for installation and service – ensures compatibility with virtually all new or existing systems and equipment pad conditions.
STANDARD Cupro Nickel Heater Exchanger – Totally managed flow provides exceptional corrosion resistance and erosion protection. Ideal for today’s salt-based electronic chlorination systems
Superior Hydraulic Performance – Industry-leading hydraulic performance saves energy by reducing circulation pump run time
State-of-the-Art Finn Plate Heat Exchanger – With special V-groove design for faster heating and longer life
Insulated Fire Tile Combustion Chamber – Unlike older forms of insulation, Fire Tile securely traps the heat, delivering the most performance from each BTU
Hot-Surface Silicon Nitride Ignition System – Exclusive silicon nitride ignition system for dependable lighting and reliable operation
Dual Voltage – Installation is simplified with voltage that adapts to either 110V or 220V

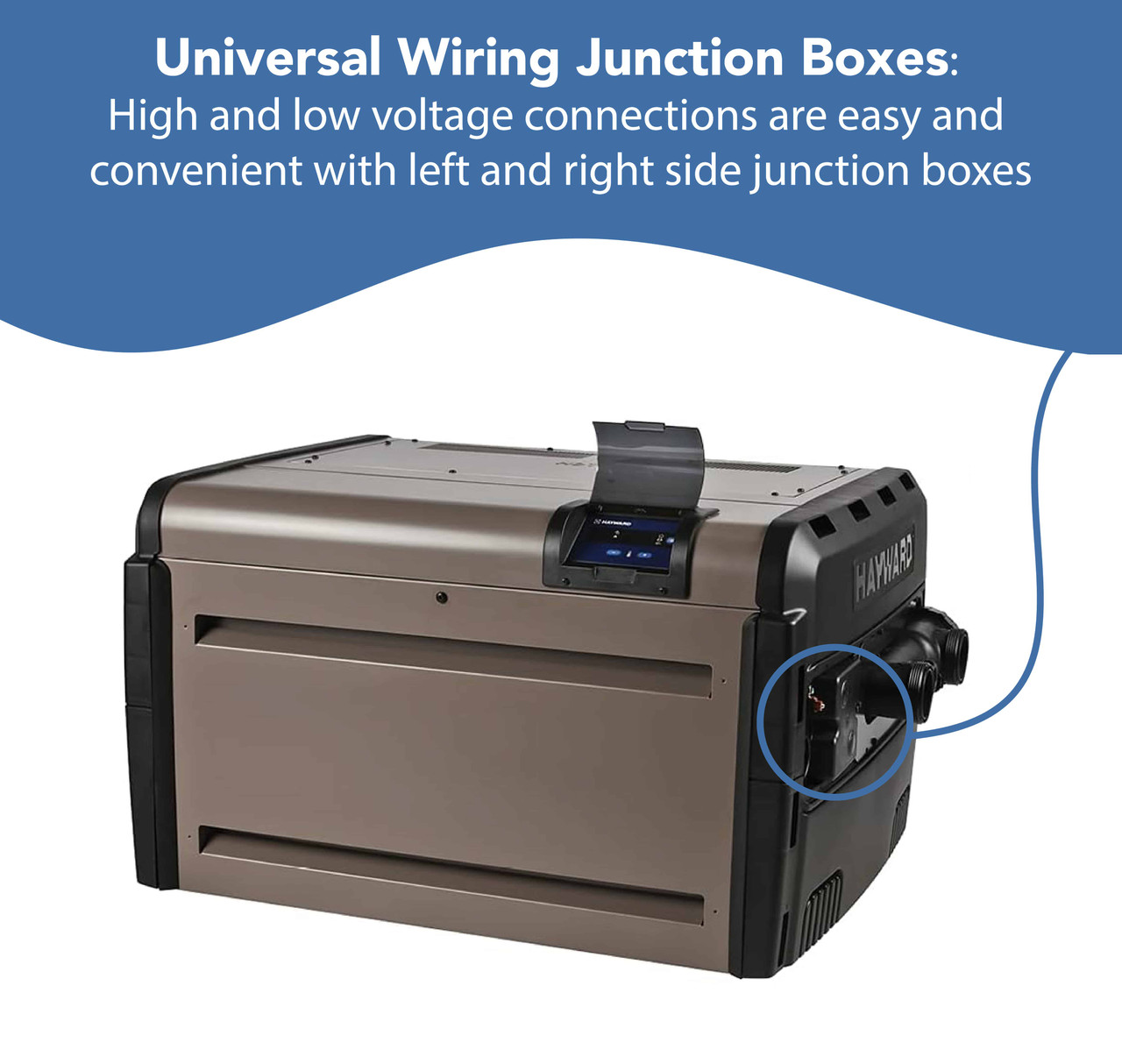

Universal Wiring Junction Boxes – High and low voltage connections are easy and convenient with left and right side junction boxes
Digital LED Control Panel / Electronic Control – Display maintains water temperature; monitors heater performance with self-diagnostic capability
Low NOx Emissions – Environmentally responsible
Combining advanced technology with universal-fit flexibility, the Hayward Universal H-Series heater is a smart choice for virtually any new installation or existing system upgrade. Delivering state-of-the-industry performance, outstanding energy efficienc
Model W3H250FDP BTU 250,000 Width 28” Depth 29 ½” Height 24” Water Connections 2” x 2 ½” Heat Exchanger Cupro Nickel Indoor Vent Pipe Diameter 6” Heater Weight 134 lbs Gas Connection at Heater ¾” Gas Connection at Heater ¾”
