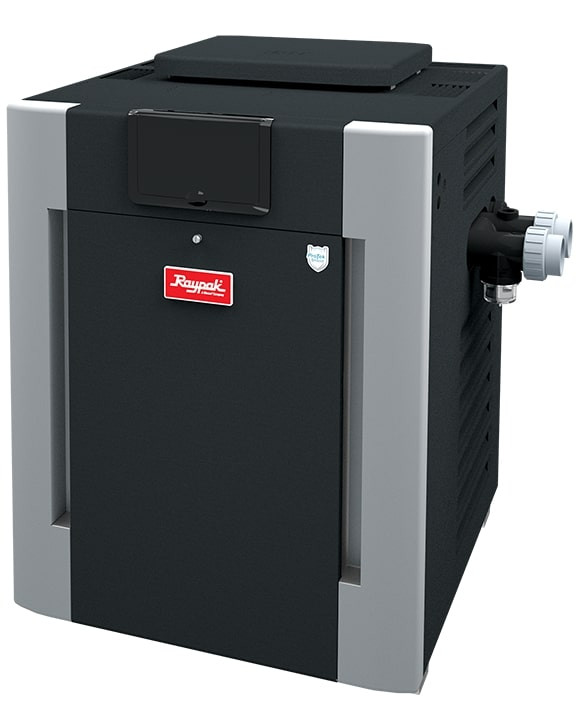

RayPak 266A Milivolt 266,000 BTU Natural Gas Heater

SKU#: 340413
$2,449.00
$2,649.99
You save 8%
    Availability: In Stock

    Description

    - 266,000 BTU Natural Gas, Electronic Pool Heater -

    Enjoy your pool... Extend your swim season!!!

    Your pool and spa is a long-term investment that you, your family and friends will enjoy year after year. Now, there is an easier way to enjoy that investment more often, more reliably and more efficiently throughout the year... the Raypak Digital pool and spa heater. Think about being able to use your pool or spa at the perfect comfort level even when Fall arrives...or when the first chill of Winter is felt in the wind...or in the Spring or Summer when evenings can turn chilly in a minute! Helping you get more enjoyment from your pool or spa is the smart idea behind the Raypak Digital. For more information, visit the Manufacturer's website

    MODEL # P-R266A-MN

    Millivolt Models

    • Mechanical Thermostat - The Raypak Millivolt gas heater comes with one mechanical thermostat. This control allows you to set your pool or spa temperature precisely at your favorite setting.

    • Millivolt Controls - No power source is required for the Raypak Millivolt heater. All operating electricity is supplied by the pilot thermocouple.

    Stainless Steel Burners
    Burner design is a critical component in any gas heater. The stainless steel burner system used in the Raypak Digital is inherently forgiving and extremely robust. The burner is self-adjusting to compensate for gas pressure fluctuations, allowing the heater to always burn clean and safe.

    Smooth Light Off
    The soft-opening gas valve ensures smooth turn-on; no “Hard Light” to worry about. The easily removable burner tray and pilot assembly make service and maintenance a simple task. Pilot Ignition
    The Raypak Digital uses a spark-to-pilot ignition system. This is the most reliable and robust ignition system available–an industry proven standard for over 30 years.

    Condensation-Free Operation
    Both water temperature and flow rate inside the heater are controlled to help eliminate condensation, sooting and scale buildup that can shorten the life of a heater. Raypak engineered the Unitherm Governor specifically for pool heater applications, regulating low-temperature incoming water to help reduce condensation. The built-in automatic bypass helps prevent scaling and erosion by balancing the flow going into the heat exchanger.

    Rust-Free Waterways
    The Raypak Digital, with polymer headers, is equipped with an integral copper finned-tube heat exchanger and stainless steel tube sheets. Even the smallest details such as the studs and nuts are made out of stainless steel. A heater that will last year after year and can easily be serviced if the need should ever arise.

    Model

    206

    266

    336

    406

    BTU Input

    199,500

    266,000

    332,500

    399,000

    Features

    • Cabinet
      - Outdoor top - (standard)
      - Wind-resistant design
      - Channels rainwater out
      - Textured powder-coat finish
      - Optional indoor top

    • Burner Tray
      - Easily removable
      - Stainless steel burners
      - Brass orifices
      - Aluminized metals
      - Stainless steel heat shield
      - Spark-to-pilot ignition
      - Soft-opening gas valve

    • Heat Exchanger
      - Integral copper fin tube (standard)
      - Automatic bypass
      - Unitherm governor Polymer headers
      - Stainless steel tube sheet
      - Reversible for left-side water connections.
      - ASME - (optional)
      - Cupro-nickel - (optional)

    • 2” CPVC Connections

    • High Limits and Controls
      - Mounted on the in/out header

    • Ceramic Fiber Combustion Chamber

    • Non-Combustible Base
      Heater can be installed on a combustible surface

    • 120/240V
      - Incoming power can be connected to the right or left side.


    Highlights

    The Raypak 206 Natural Gas Electronic Pool Heater will allow you to enjoy your pool or spa more often and reliably throughout the year. Energy-smart, fuel-efficient, and built to last, it will extend your pool season!
